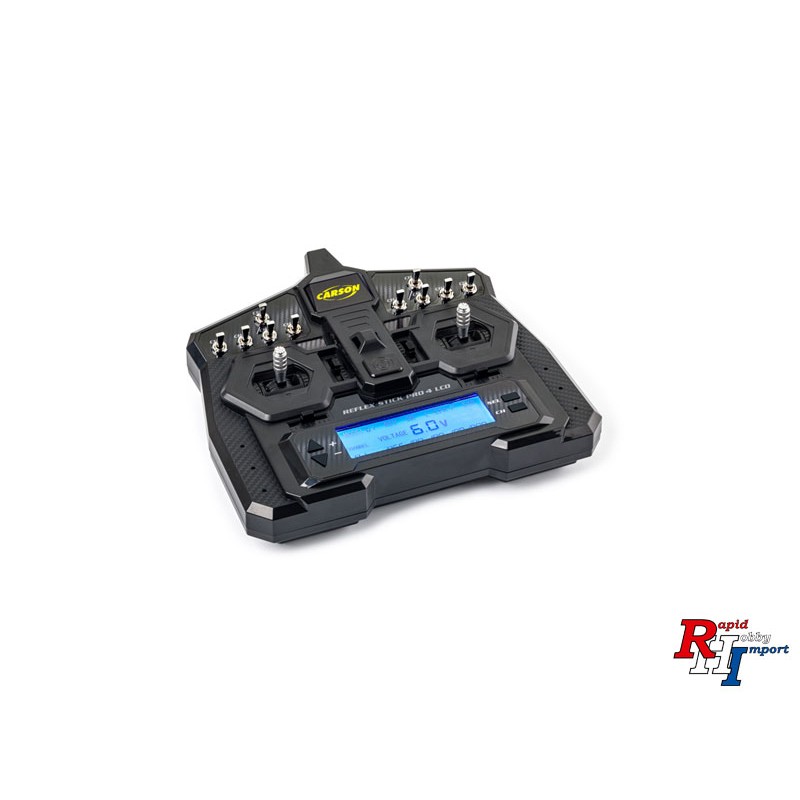

FS 14K Reflex Stick 4 Pro LCD 2.4 GHz

Carson 501023 FS 14K Reflex Stick 4 Pro LCD 2.4 GHz

Carson Number: 501023

EAN: 4005299017681

14-channel LCD remote control,
15-channel receiver
and instructions

Features:
1. 15 model memories
2. Four continuously adjustable, fully proportional channels
3. Channels 7, 8, 9, 10, 13, 14 via 3-position toggle switch
4. Channels 5, 6, 11, 12 via 3-position push buttons with centre position
5. Dual rate channels 1-4 (servo travel limit)
6. 100% compatible with TAMIYA MFC 01/02/03 and DMD unit
7. Servo reverse (reversal of direction of travel channels 1-4)
8. Trim function for channels 1-4
9. EPA channel 1-4 (servo travel limit)
10. EXP function channel 1-4 (exponential)
11. Failsafe system
12. Stick assemblies with sensitive mechanics
13. Modern ergonomic RC housing
14. Logo illumination when switched on
15. Surface with an elegant carbon look

Technical details:
• Transmitter operating voltage 4.8 - 6 V (4 AA cells)
• Receiver power supply (without BEC) up to 11 V possible
• Graupner J/R connector system

Recommended accessories:

15-channel receiver
Item no. 500501552

AA battery set
Item no. 50609092

CS-6 standard size servo JR/MG/WP/0.2
Item no. 500502041

Reflex 6/14Ch Switch 2 (2x2.5A, max. 16V)
Item no. 500503060

Reflex 6/14Ch Switch 4 (4x2.5A, max. 16V)
Item no. 500503061
